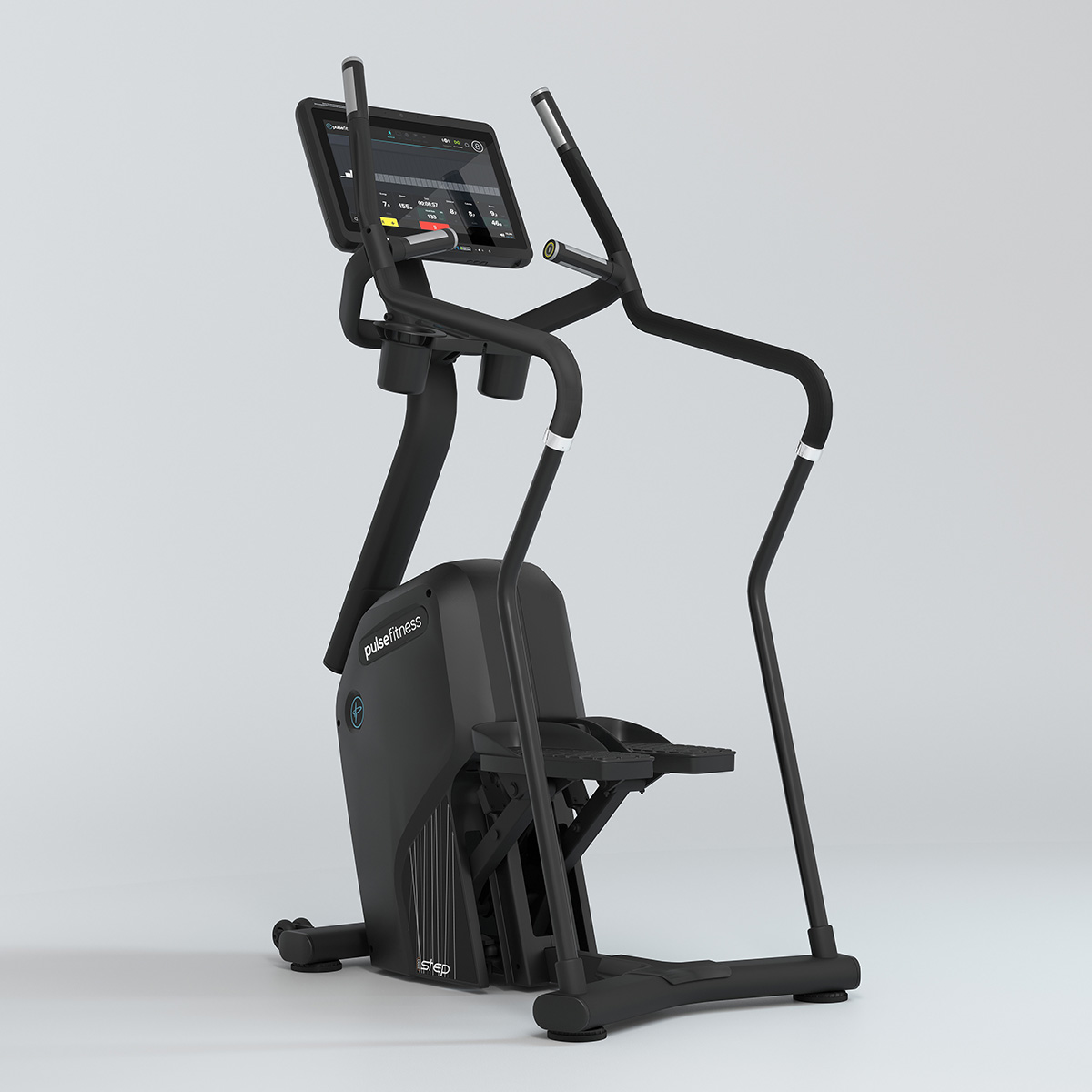

Step – Independent Stepper

Colour
Frame: Sand Black
Mouldings: Soft Black

Console
18.5″ Touchscreen

Console Software
Cirrus V4

Power Supply
110V/220V

The Step (independent stepper), provides a more efficient workout for the lower body muscles compared to traditional steppers, this is achieved via the Pulse independent step stroke design.  It is a compact, extreme durable, high quality product that requires minimal floor area.  It can deliver both a smooth, quiet performance, whilst still being fully entertaining having access to the latest state-of-the-art technology.

Intuitively designed, low-maintenance, reliability delivering an optimal workout.

PRODUCT DIMENSIONS (L x H x W)
Length
114cm / 44-7/8″
Height
179cm / 70-1/2″
Width
73cm / 28-3/4″

Step-up height
37cm / 14-9/16″

WEIGHTS
Weight
108.5kg / 239.2lbs.
Maximum User Weight
160kg / 353lbs.

ENTERTAINMENT
Integrated Television Tuner
UK/EU – Analog – PAL / Digital – DVB-T / T2 (Freeview)
US – ATSC Tuner / PAL & NTSC (Auto Switch)
IPTV
MPEG-2 Standard Definition; MPEG-4 AVC/H.264 Standard Definition
Radio
Digital – DVB-T / T2
Simultaneous TV and workout statistics display
Yes
Web browser
Yes – Chrome™
Content Mirroring
Yes – Anytime/Miracast – Miracast allows users to wirelessly share multimedia, including high-resolution pictures and high-definition (HD) video content between Wi-Fi devices, even if a Wi-Fi network is not available. Miracast projects content from a smartphone to a cardiovascular machines infotainment system

DISPLAYS AND CONTROLS
Touchscreen
47cm / 18-1/2″ Integrated High Contrast Capacitive Multi-Touch Colour Display
16:9 Aspect Ratio
1366×768 Resolution
Colour Depth 16.7M
Interactive User Console (cm/”)
Yes – 53.3cm / 21″
Navigation
Touchscreen (& tactile controls – with raised iconography on the product)

USER ID
Active RFID reader
Yes
Bluetooth®
Yes
Via NFC Tag
Yes

CONNECTIVITY
LAN (Ethernet)
Yes
WiFi – IEEE802.11b/g/n+ac (2.4 GHz & 5GHz)
Yes
Bluetooth® 5.3
Yes
2.0 MB camera and microphone
Yes
USB 2.0
Service Port – For software updates & Smartphone device charging
Headphone Jack
Stereo 3.5mm
Connects to Samsung Galaxy Watch and Apple Watch
Yes

SITE SUPPORT
TRAKK® Professional Plus (NFC) Connectivity
Optional – Yes

SUPPLEMENTARY FEATURES & UTILITIES
Console O/S
Android 9.01
Audio feedback
Optional – Yes
Microphone Built-In
Yes

HEART RATE MONITORING
Telemetry
Equipped for heart rate telemetry reading using a Wireless Heart Rate chest strap that supports BLE, ANT+ standard 5kHz coded transmission (Optional – chest strap required)
HandPulse Sensors
DSP HandPulse Sensors (Digital Signal Processing)

TECHNICAL SPECIFICATIONS
Power requirements
EU – 220-240V AC, 50/60Hz
US – 110-120V, 60Hz

OPERATION
Mouldings
The console is surrounded by an injection-moulded casing, these are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.

WORKOUTS
Workout Programmes
Quick Start
Programmable 30 min Count-Up/Down Timer
Goals
Duration/Time, Distance & Calorie (Preset & Custom)
Pacer
Distance Goal (Preset & Custom)
Profile
Cross Country, Intervals, Hill Climb & Aerobic (Basic, Intermediate & Advanced Levels), Random & Custom
Heart RC
Target Heart Rate (Recovery, Fat Burn, Aerobic & Anaerobic), Exercise Goal (Duration/Time, Distance or Calorie)
E-Scape
Virtual Interactive Video Workout’s (includes Road, Lake, Valley & Beach)

PERSONAL ENTERTAINMENT
Freeview HD TV
Yes
Device Content Mirroring
Yes – Anytime/Miracast – allows users to wirelessly share multimedia, including high-resolution pictures and high-definition (HD) video content between Wi-Fi devices, even if a Wi-Fi network is not available. Anytime/Miracast projects content from a smartphone to a cardiovascular machines infotainment system
Web browser
Yes – Installation of integrated apps/weblinks (for example – Chrome™, Facebook®, MyZone®, X® & YouTube™)
App Launcher
Yes

SETTINGS
Units
Metric / Imperial
Bluetooth®
Audio

METRICS
Level
01 -40
Energy
Mets
Power
Watts
Time
Hours, Minutes & Seconds
Calories
Kcals
Distance
Km / miles
Heart rate
bpm
Speed
rpm / spm
Pacer
kph / mph
Vs Pacer
Behind mtr / ft
Vs Best Lap
Ahead mtr / ft
Lap Times
Minutes, Seconds

SUPPLEMENTARY FEATURES & UTILITIES
Languages available
English (UK), French, German, Japanese, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Turkish & Welsh
One-button Start
Yes
Pause Function
Yes
Speed Quick Control
Yes
Live QR-Codes
Optional – Yes

ADMINISTRATION
General Setup
Localisation
Adjust Default Language, Date & Time, Region, 24/12-hour Clock, Configuration
Default user
Adjust Default Sex, Weight, Age & Metric/Imperial, Configuration
Display
Adjust Default Brightness, Configuration
Audio
Adjust Default Headphones Volume, Configuration
Results Sharing
Enable/Disable Fitbit & or Strava Results Sharing

NETWORK
Ethernet
Configure, Ping test
Wi-Fi
Configure

SERVICE
Service & Firmware
Automatic Software Updates
Manual OS Updates

WORKOUT SETUP
General
Adjust Default Pause – Seconds, Quick Controls / Max speed – kph
Goals
Adjust Default Max duration goal – min, Max distance goal – Km, Max calories goal – Kcals, Configuration
Quick Start
Adjust Default Exercise type (Duration goal/Distance goal/Calories goal) Goal – mins, Configuration
Cool Down
Adjust Default Active after time – mins, Configuration
E-Scape
Adjust Default Enabled State goal – Km, Configuration

GYM SCHEDULES
Create New Schedule
Yes
Schedule Type
Schedule Name, Start Time – am, End Time – am, Duration – mins
Days Active
Mon, Tues, Wed, Thur, Fri, Sat, Sun
Schedule Setup
Quick Start Duration
Sleep (Enable/disable – Reboot on wake)
Disable Entertainment (Enable/disable – TV, iPod, Internet, App Bar)
Max Workout Duration (Adjust Default Start time – am, End time – am, Duration – mins, Distance – Km, Calories – Kcals, Configuration)
Guest Disable (Adjust Default Start time – am, End time – am, Configuration)

GYM MANAGEMENT
TRAKK
NFC user login (Enabled/disabled)
Asset management (Enabled/disabled)
NFC user login
Show login page (Enabled/disabled)
Guest Account (Enabled/disabled)
Doctors note lockout (Enabled/disabled))
Asset management
Screen advertising (Enabled/disabled)
Custom branding
Club Logo (Enabled/disabled – Add Logo, Site Name, Configuration)
text_tap( Enabled/disabled)

ENTERTAINMENT SETUP
TV
Enabled/disabled – Configure TV
Type (DVB-T, DVB-T2, DVB-T2(BOX), ATV, IPTV)
Channel Tuning
HDMI
HDMI Input (Enabled/disabled – HDMI Input – Name Configuration)
Internet
Enabled/disabled – Browser – Option, Homepage – URL Shortcut
Apps
Apps State (Enabled/disabled)
Apps Bar (Add App – Add URL Shortcut)

MANUAL SCREENSAVERS
Screensaver Setup
Default Type (png/gif, mp4, tb)
Show after (disabled, min/hour)
Slide duration (sec/min)
Add Images, Add Videos

DRIVE SYSTEM
Drive
Internal self tensioning poly V belt
Power
Generator brake

PRODUCT FEATURES
‘Quick’ controls featuring handlebar resistance adjustments
Yes
40 Resistance levels
Yes
Anti-slip pedals
Yes
Independent pedals
Yes
Pedal arm drive Kevlar® polychain
Yes
Twin removable storage buckets/cup holders
Yes – There is provision for a users personal storage. The storage area and bucket have enough room to deposit items like mobile phones, keys & even a water bottle.
Integrated device storage tray
Yes
Front wheels for easy mobility
Yes

STRUCTURE
Frame Construction
All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection
Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.

OPERATION
Smooth Operation
Pulse Fitness cardiovascular products are renowned for their smoothness of operation. This results from our precision-engineered manufacturing processes.
Hand-Grip Assembly
The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant. They are over-sized in diameter 39mm (1-1/2″). Encompassing the hand-grips are, aluminium end-caps, these provide great durability.
Universal Wireless Charging
Yes – Recharge personal SmartPhones (and devices) with the integrated Qi inductive wireless charger
Output – 5W/7.5W/10W/15W
Mouldings
The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.
All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.

SAFETY
Moulded Rubber Foot Pads
Yes – Designed to protect polished floors whilst enhancing safety. Moulded rubber foot pads are supplied as standard.

Connectivity
This equipment has been designed to allow seamless upgradeable access to Pulse Fitness’ digital fitness ecosystem TRAKK®.
TRAKK® is a fitness tracking and management system. Its users can track their activity, both within and outside any ‘connected’ fitness facility.
TRAKK® centralises data on a cloud based server.
If the fitness facility has opted for TRAKK®, the solution will allow contact with staff, monitor the fitness workout progress and manage programmes assigned to users. The result is a personalised workout experience.
This flexible, interactive, digital system requires updates to Pulse Fitness’ equipment (Consoles & QR-codes). A PC to run the desktop software/Tanita scales/NFC tag reader and a smartphone/tablet to use Web/Mobile App’s.
