Pre-Configured Functional Training Rig
For bespoke Rig configurations, please click on the contact button
Sold without Optional Extras
Back-order Details
Currently, delivery estimate – 12 weeks from receipt of order
Model No
960i
Sold without Optional Extras
Colour
Frame: Black
Constructed from heavy-gauge steel section, and built to endure the most vigorous of workouts. The free-standing, single or dual-sided Functional Training Rig is the most versatile, modular, piece of commercial fitness equipment available. Designed to support a wide range of workouts and accessory storage, all within one highly customisable, space-efficient solution.
The 960i can be configured (and re-configured if necessary) to fit into extremely specific spaces, and therefore can accommodate the needs of both athletes and gym-goers training needs.
PRODUCT DIMENSIONS (L x H x W)
Overall Functional Rig Length
686.4cm / 270-1/4″
Single Strength Bay Length
112.5cm / 44-5/16″
Single Conditioning Bay Length
137.5cm / 54-1/8″
Height
320.5cm / 126-3/16″
Width
185.9cm / 73-3/16″
Recommended Ceiling Height
400cm / 157-1/2″
WEIGHTS
Maximum User Weight
180kg / 397lbs.
STRUCTURE
Frame Construction
All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection
Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
OPERATION
Functional Rig Uprights
The 2.4m (94-1/2″) uprights are constructed from commercial grade, 75x75x3mm (11 gauge), heavy-duty, box steel. They feature 46 laser-cut holes (per-side), and 38 indication numbers, to make it easier to arrange any accessories. Holes in baseplates are provided for securing to the floor.
Mouldings
The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.
All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
ADJUSTMENTS
Frame Adjustment / Quick Reference
Laser-Etched and Numbers in Frame Uprights.
Multiple Start Positions
The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken.
Multiple Grip Positions
Multiple grip positions allows the user to be more specific about which muscle groups are worked out.
INSTRUCTIONS
Ease of Use
Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
4 x Multi-Grip / 2 x Pull Up Bars
Multiple-grip, chin-up handles.

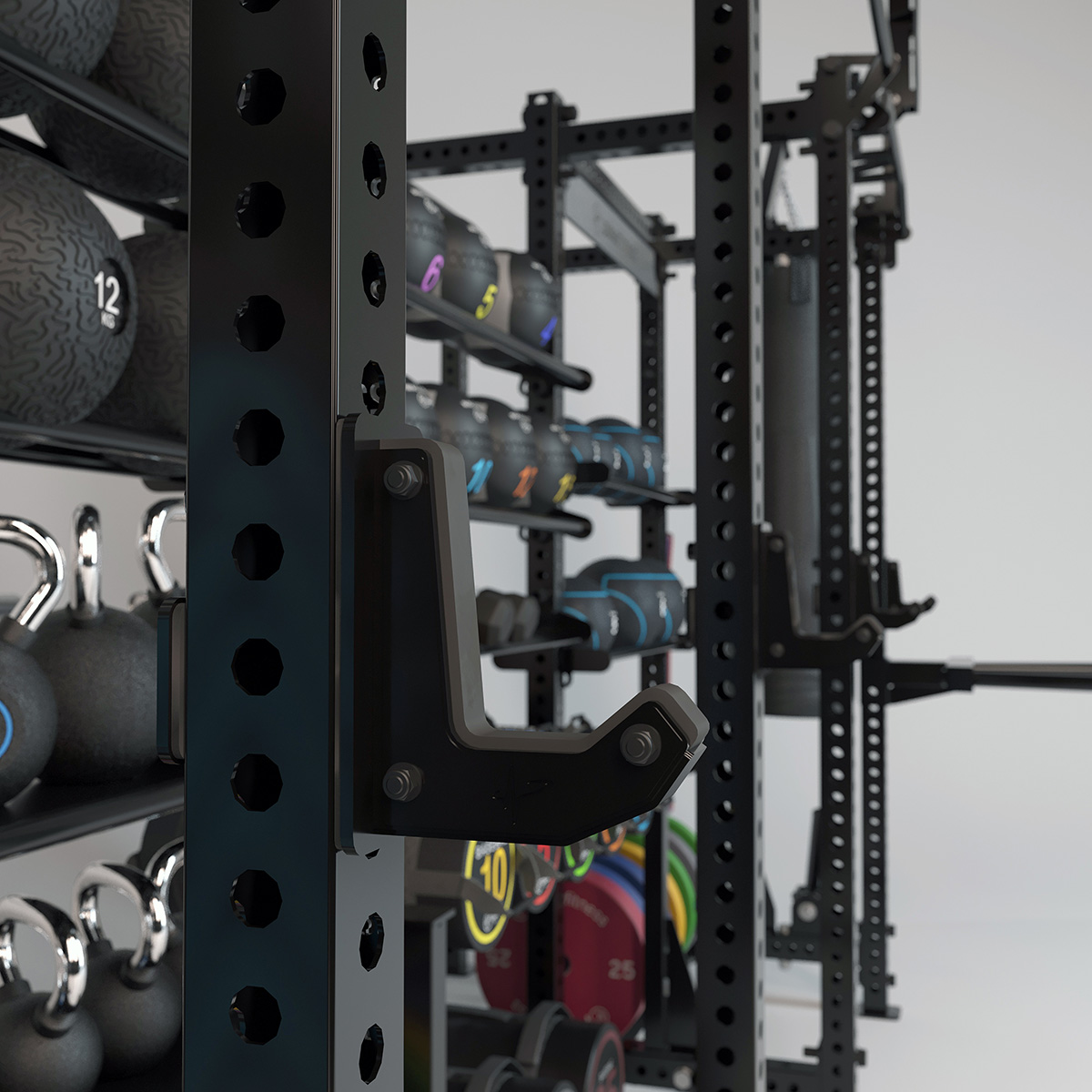

6 x Flat Sandwich J-Cups (in a Pair)
The heavy-duty flat sandwich j-cups feature a thick polyurethane insert to protect the knurling on any olympic powerbar, and a plastic lining to protect the Functional Rigs uprights. Like the rest of the Functional Rig range of Attachments, they are finished in a durable, epoxy powder coat, that is incredibly resistant to chips and rust.
They have a larger opening than that of a standard j-hook, this works especially well with regular and oversized specialty bars.
Each j-cup has a weight capacity of 453.6kg / 1,000lbs, and is supported by a laser-cut sandwich construction.
6 x Spotter Arms (in a Pair)
Lift safely with confidence using the versatile, easy-to-use spotter arms. Made from heavy-duty, 3mm (11 gauge) steel box section, they have a weight capacity of 453.6kg / 1,000lbs. Quickly slide them into the uprights of the Functional Rig (like a j-cup), securely lock them with the quick-release pin, then rotate them into place. Plastic liners along the top protect the olympic powerbar during heavy drops.
24 x Plate Storage Horns
Store any olympic weight plate on the Functional Rig without need for a separate storage unit. Each storage horn is 32.6cm / 12-13/16” long, with a diameter of 48.3mm / 1-7/8″. They are finished in chrome-plated steel, which is 3mm (11 gauge) thick. The horns are a bolt-on design and can hold four 25kg / 55.1lbs. training olympic bumpers plates.
1 x Resistance Band Holder
Add extra versatility to the Functional Rig with a super secure, and durable, resistance band holder. This solid-steel peg design bolts onto the Rig’s uprights. The band holder can also be used to store chains, attachments, and other gym accessories.
6 x Dual Wall Ball Targets
Practice training with a wall ball. The dual wall ball targets can be set to the standard workout height for a wall ball, which is 3.5m / 10’ for the average height of a male, and 2.7m / 9’ for the average height of a female. The target features laser-cut detailing, and is finished in black epoxy powder coat.
Functional Training Rig - 002
Please Note: This downloaded file needs software that supports .DXF to be opened
