Shoulder Press

Premium Shoulder Press (Converging Axis / Independent Arm) 1x100kg Weight Stack Tower with 10.1" (Cirrus V4) Touchscreen Console in Sand Black with Black / Carbon Fibre Upholstery Red Stitching (NFC Compatible)(110V/220V)
SKU: 308H-AFN

Colour
Frame: Sand Black
Mouldings: Soft Black


Upholstery
Black / Carbon Fibre (Double Red Stitching)


Console
10.1″ Touchscreen


Console Software
Cirrus V4


Power Supply
110V/220V


Model No
308H


Back-order Details
Currently, delivery estimate – 6 weeks from receipt of order


£5,736.75 EX-VAT

Make 3 payments of £1912.25 (+VAT). No fees. Learn more
PRODUCT INFORMATION

MEASUREMENTS


PRODUCT DIMENSIONS (L x H x W)
Length
165.7cm / 65-1/4″
Height
135cm / 53-1/8″
Width
144cm / 56-11/16″


WEIGHTS
Weight
298kg / 657lbs.
Incremental – Optional Add-on Weight
2.5kg / 5.5lbs.
Weight Stack Plates – Standard Total Weight
100kg / 220lbs.
Maximum User Weight
180kg / 397lbs.

CONSOLE


DISPLAY AND CONTROLS
Touchscreen
25.7cm / 10-1/8″ Integrated High Contrast Capacitive Multi-Touch Colour Display
16:9 Aspect Ratio
1200×800 Resolution
Gesture Interaction (cm/”)
Yes – 30.5cm / 12″
Navigation
Touchscreen (& tactile controls – with raised iconography on the product)


USER ID
Active RFID reader
Yes
Bluetooth®
Yes
Via NFC Tag
Yes


CONNECTIVITY
LAN (Ethernet)
Yes
WiFi – IEEE802.11b/g/n+ac (2.4 GHz & 5GHz)
Yes
Bluetooth® 4.2 with NFC
Yes
USB 2.0
Service Port – For software updates


SITE SUPPORT
TRAKK™ Professional (NFC) Connectivity
Optional – Yes


SUPPLEMENTARY FEATURES & UTILITIES
Console O/S
Android 9.01


TECHNICAL SPECIFICATIONS
Power requirements
EU – 220-240V AC, 50/60Hz
US – 110-120V, 60Hz


OPERATION
Mouldings
The console is surrounded by an injection-moulded casing, these are are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.

SOFTWARE


WORKOUTS
WORKOUT PROGRAMMES
Quick Start
Programmable Sets and Reps Count-Up
Goals
Rep Goal, Sets & Reps (Preset and Custom)


SETTINGS
Units
Metric / Imperial


METRICS
Sets
Total Sets Count
Reps
Total Reps Count
Weight
Total kg / lbs. Lifted Count
Duration
Minutes, Seconds
Avg. Range
%
Avg. Tempo
Slow, Good, Fast


EQUIPMENT CONTENT
How to Set-Up & Use equipment
Yes – How to Set-Up the Equipment instructional videos and How to Use the Equipment instructional videos
Results
Yes
Training Guidance
Next exercise, Training programme
Automatic Workout Tracking
Yes


SUPPLEMENTARY FEATURES & UTILITIES
Languages available
English (UK), French, German, Japanese, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Turkish & Welsh
One-button Start
Yes
Pause Function
Yes
Live QR-Codes
Optional – Yes


ADMINISTRATION
GENERAL SETUP
Localisation
Adjust Default Language, Date & Time, Region, 24/12-hour Clock, Configuration
Default user
Adjust Default Sex, Weight, Age & Metric/Imperial, Configuration
Display
Adjust Default Brightness, Configuration


NETWORK
Ethernet
Configure, Ping test
Wi-Fi
Configure


SERVICE
Service & Firmware
Automatic Software Updates
Manual OS Updates


WORKOUT SETUP
Goals
Adjust Default Rep Goal – 3 Sets x 10 Reps, 3 Sets x 12 Reps, 4 Sets x 10 Reps, 4 Sets x 12 Reps, Configuration
Quick Start
Adjust Default Exercise type (Sets goal/Reps goal) Goal – sets/reps, Configuration


GYM SCHEDULES
Create New Schedule
Yes
Schedule Type
Schedule Name, Start Time – am, End Time – am, Duration – mins
Days Active
Mon, Tues, Wed, Thur, Fri, Sat, Sun
Schedule Setup
Sleep (Enable/disable – Reboot on wake)
Guest Disable (Adjust Default Start time – am, End time – am, Configuration)


GYM MANAGEMENT
TRAKK
NFC user login (Enabled/disabled)
Asset management (Enabled/disabled)
NFC user login
Show login page (Enabled/disabled)
Guest Account (Enabled/disabled)
Doctors note lockout (Enabled/disabled)
Asset management
Screen advertising (Enabled/disabled)
Custom branding
Club Logo (Enabled/disabled – Add Logo, Site Name, Configuration)
text_tap( Enabled/disabled)


MANUAL SCREENSAVERS
Screensaver Setup
Default Type (png/gif, mp4, tb)
Show after (disabled, min/hour)
Slide duration (sec/min)
Add Images, Add Videos

TECHNICAL SPECIFICATIONS


STRUCTURE
Frame Construction
All Pulse Fitness products are constructed from durable steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout
Frame Protection
Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity
Weight Stack Tower – Guarding
The weight stack tower is fully enclosed
Shrouds Colour
Carbon Fibre appearance


OPERATION
Fully Enclosed Weight Stack Tower / Magnetic and Tethered Weight Stack Pin / Weight Plates / Guide Rods
The weight stack tower is completely covered to provide the best possible user safety experience (in full compliance with EN and ASTM standards), protecting bystanders from accidental contact with a moving weight plate.
The front facing shroud is full-length, with a 60mm (2-3/8″) wide slot, giving access to the 8mm (5/16″) diameter, weight stack pin.
The magnetic weight stack pin assures positive locking into the weight plates and is secured to the weight stack via a plastic-coated tether cable. The pin cannot be removed from the machine.
The cast and machined solid-steel weight plates are 15mm (9/16″) thick, 5kg (11lbs), with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are 20mm (13/16″) in diameter, made from steel, precision centreless ground, polished with corrosion-resistant chrome plating for a smooth operation and rust retardation.
The weight stack tower is so positioned to be accessible from a seated position wherever possible.
Weight Stack Suspension
Proven rubber bumper damping system.
Smooth Operation
Pulse Fitness strength products are renowned for their smoothness of operation. This results from our precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs
Belt Transmission
An ultra-modern manufacturing process is required to produce the open-ended steel-reinforced PU-flat belt (measuring 25mm (1″) x 2.3mm (1/16″)). This transmission system is constructed from a modified polyurethane which is lightweight, extremely flexible, has a high strength co-efficient (with a 92 shore A rating) is both hard-wearing and durable. It’s virtually corrosion-proof design is due to its metal cores being manufactured from galvanized steel which are then enclosed within a polyurethane shield. The cores are positioned parallel-to-edge in alignment which increases their combined flexibility. This approach allows the bearing face of the Belt to be made wider and so the machines pulleys are more easily driven. The polyurethane coating, ensures the Belt has anti-slip traction and an efficient power transmission. All of this technology provides the user with a quiet, smooth operation
Enclosed Pulleys and Bearings
The pulleys are 7.4cm (2-15/16″) in diameter. They are constructed from polypropylene that is reinforced with fiberglass and are designed to be convex (both with and without side flanges). These crowned pulleys ensure excellent power transmission and produce a smooth running product.
The pulley’s bearings are ABEC-rated, precision ground and have sealed ball bearing races, for added durability and a ‘fluid’ smooth feel.
The pulley’s pivot axles are solid steel supported by 25mm (1″) oil-impregnated bronze bushes that allow for precise alignment and frictionless movement
Handlebar Arm Motion
The motion of the handlebar arms mirrors the body’s natural movement, leading to a smooth, exercise and providing maximum training effect in the most efficient manner possible
Hand-Grip Assembly
The hand-grips have been positioned to ensure a neutral wrist position is always achievable. This facilitates less stress on the users wrist, which in turn allows for a more comfortable, and a safer work-out
The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant. They are 35mm (1-3/8″) diameter Encompassing the hand-grips are the machined, polished stainless steel end-caps, these provide great durability
Range of Motion
All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform
Counterbalanced Weight
The handlebar arms are counterbalanced allowing the user to start an exercise with a small weight selection
Mouldings
The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean
All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean


ADJUSTMENTS
Seat and Lever / Manual Adjustments
The gas-assisted, ratcheting seat adjusts, allowing it to fit a wide range of users. It has a spring-loaded, push-to-release mechanism. Its lock-pin is constructed using a hardened plunger and chrome plated tube-in-tube adjustment assembly
Alignment
All points of axis and rotation are located so as to enable perfect alignment of body and machine – reducing the risk of training injury
Multiple Hand-Grip Positions
Multiple hand-grip positions allows the user to be more specific about which muscle groups are worked out


INSTRUCTIONS
Ease of Use
Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
Graphic Information Panel
The graphic information panel is designed to show an easy-to-follow, simple step-by-step pictorial instructions. These illustrate the machines setup, the correct operating procedure, user start and finish positions and which identify which muscle groups will be trained during the work-out


COMFORT
Upholstery Construction
The long-lasting, easy-to-clean upholstered support pads and rollers, have a high resistance to: abrasion, ageing, bacteria, disinfectant, mildew, oil and stains. They are puncture, wear resistant and made from premium-quality industrial vinyl. The fabric meets or exceeds California fire regulations (Bulletin 117, section E). Total thickness is 70mm (2-3/4″)


SAFETY
Moulded Plastic Foot Pads
Designed to protect polished floors whilst enhancing safety. Moulded ABS plastic foot pads are supplied as standard

PACKAGING INFORMATION


SHIPPING DIMENSIONS (L x H x W)
Package Length
165.7cm / 65-1/4″
Package Height
135cm / 53-1/8″
Package Width
144cm / 56-11/16″


SHIPPING WEIGHT
Package Weight
298kg / 657lbs.

INSTRUCTIONAL VIDEO

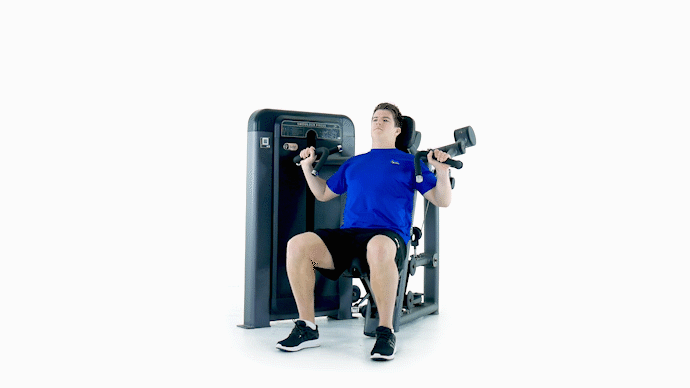

HOW TO PERFORM

Adjust the seat back so that hand grips are level with top of shoulders.

Select workout load.

Maintain a smooth, controlled motion throughout exercise.

Exhale as you press, inhale as the handles return to the start position.

Do not hold your breath.
